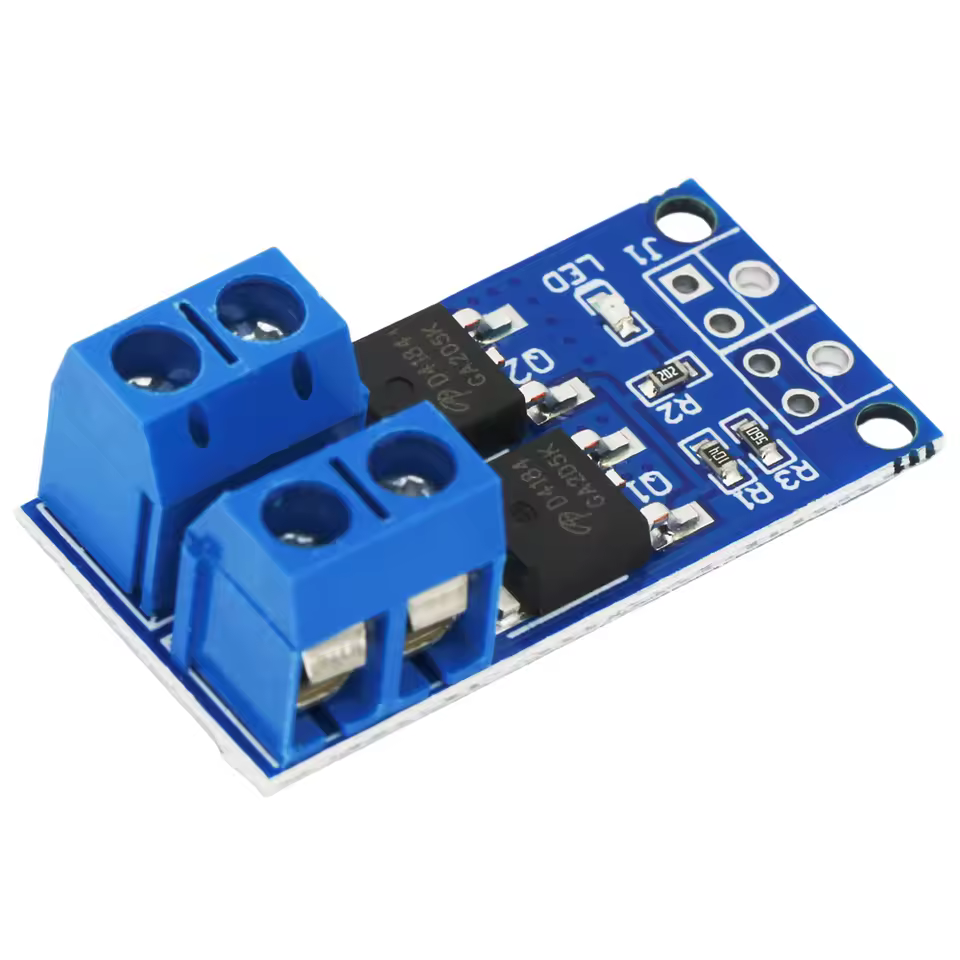

XY-MOS - PWM Motor Control
XY-MOS
PWM DC Motor Speed Control
IN: 5V-36V TRIGGER: 3.3V-20V
15A 20 kHz
- PWM DC Motor Speed Control Module
- Control DC Load (DC Motor) with high power MOSFET driver
- Model: XY-MOS
- Power Output: Dual MOSFET design provides 15A continuous current and 400W
- Voltage Input: DC 5V-36V input
- Current: 15A max
- PWM: frequency range of 0-20kHz
- Digital high-low trigger: (DC 3.3V-20V)
- Dimensions: 33.8 x 16.9 x 12 mm
- Working temperature: -40-85ºC
AliExpress listing - DC 5V-36V 15A Max 30A 400W Dual High-Power MOSFET Trigger Switch Drive PWM Regulator Adjustment Motor Speed Control Board Module
