SH-S091 (I2C OLED Display)

SH-S091

OLED display
SSD1306, I2C
128x32

  • Model: SH-S091 (rebranded MC091GX?)
  • Driver IC: SSD1306
  • Interface Type: I2C
  • Resolution: 128 x 32
  • Screen Size: 22.384 x 5.584 mm (0.91 inches)
  • Physical Size: 38 x 12 mm
  • Pixel Pitch: 0.175 x 0.175 mm
  • Input Voltage: 3.3V-5V
  • Working Temperature: -20~60ºC
  • Datasheet - MC091GX

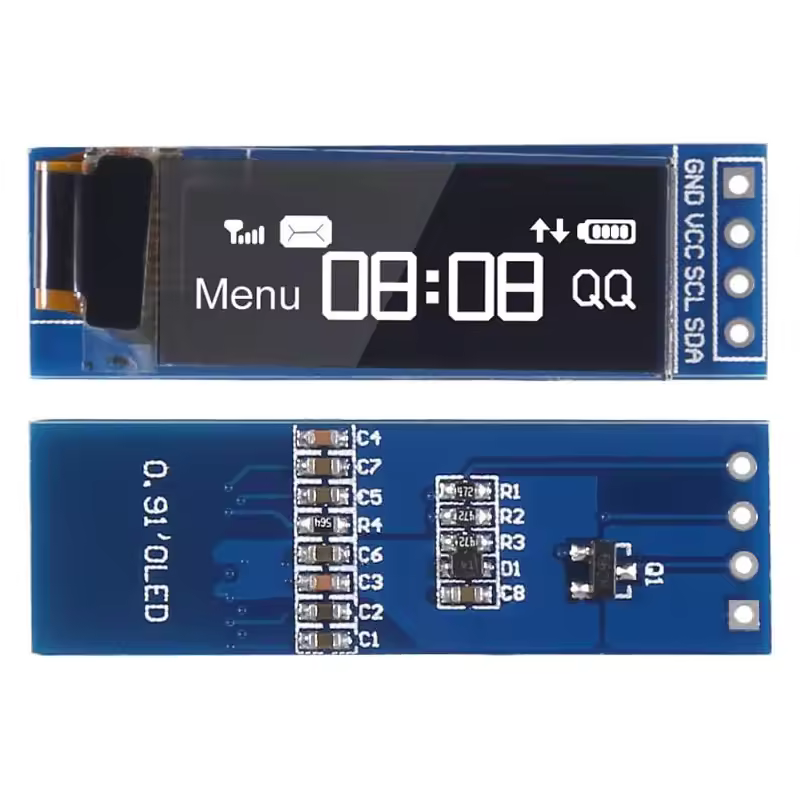

SH-S091 board

SDK

AliExpress listing - I2C OLED Display Module 0.91 Inch I2C SSD1306 OLED Display Module White / BLUE I2C OLED Screen Driver DC 3.3V~5V for Arduino
